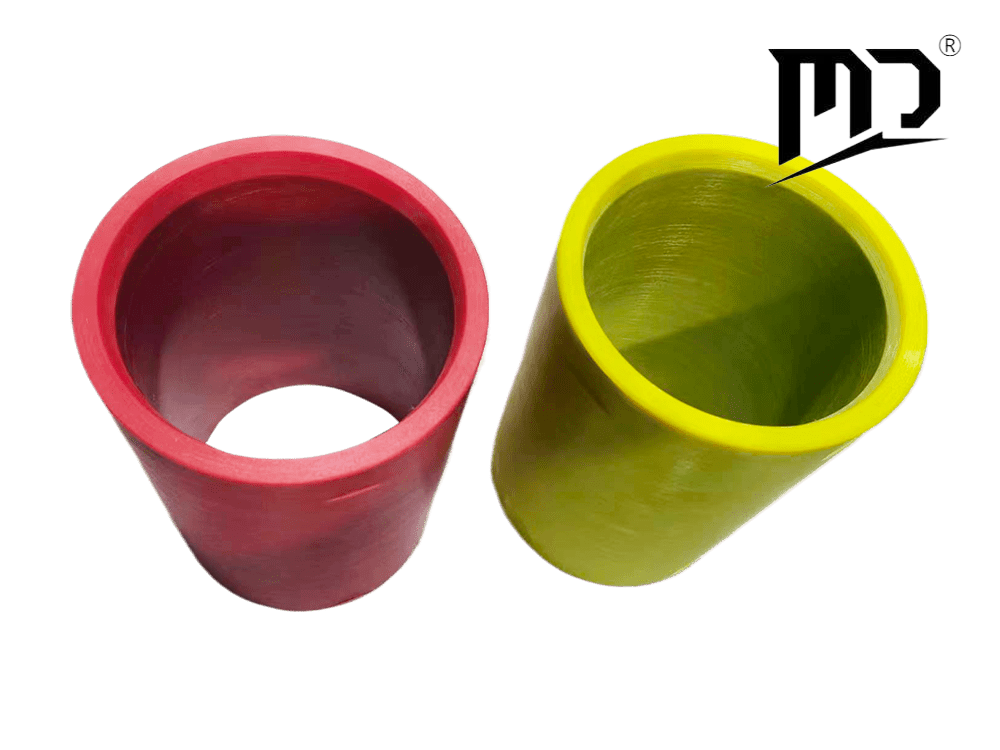

View DetailsFRP bare tube+colored tube
FRP bare tube colored tube is a high-performance product that is widely used in many fields.
Category：
Keyword：
diameter
thickness
inspection
FRP bare tube
Product details
Emperature resistance 200℃, high tenacity, high hot bending strength, Curing with methyltetrahydrophthalic anhydride, no accelerator is required, and the production efficiency is high, and it only takes 4-5 hours to wind a tube on average. Used at 200℃ there is also 70% mechanical retention
ITEM NO.： REEL CORE
LOT ＮO．：MD-S-20230510
That the inspection test were successfully carried out with the following results:
Condition as follow:
|
No. |
DESC27ºTION |
ITEM |
REQUEST |
INSPECTION RESULTS |
|
1 |
REEL CORE |
Inner Diameter |
152.40+/-0.2mm |
152.46mm |
|
2 |
Middle Diameter |
162.40mm |
162.40mm |
|
|
3 |
Outer Diameter |
182.40+/-0.2mm |
182.46mm |
|
|
4 |
Thickness |
10mm |
10.08mm |
|
|
5 |
Groove |
25.40mm |
25.38mm |
|
|
6 |
Chamfer |
27º |
27º |
|
|
7 |
Gap Line |
2.30mm |
2.35mm |
|
|
8 |
Length |
250mm/194.60mm |
249.60mm/194.58mm |
|
|
1 |
REEL CORE |
Inner Diameter |
152.40+/-0.2mm |
152.46mm |
|
2 |
Middle Diameter |
162.40mm |
162.40mm |
|
|
3 |
Outer Diameter |
182.40+/-0.2mm |
182.48mm |
|
|
4 |
Thickness |
10mm |
10.11mm |
|
|
5 |
Groove |
25.40mm |
25.4mm |
|
|
6 |
Chamfer |
27º |
27º |
|
|
7 |
Gap line |
2.30mm |
2.34mm |
|
|
8 |
Length |
250mm/194.60mm |
249.94mm/194.61mm |
FRP bare tube colored tube is a high-performance product that is widely used in many fields.
1. FRP bare tube
Structural performance
FRP bare tube colored tube has excellent strength. Its internal fiber-reinforced structure enables it to withstand greater pressure, tension and bending force, and has great application potential in supporting components, cables and other aspects in structural engineering such as buildings and bridges. For example, in some temporary building structures, FRP bare tubes can replace traditional metal pipes, reducing the weight of the structure while providing reliable support.
It has strong corrosion resistance. Whether it is exposed to wind and rain erosion outdoors, or in some special environments with chemical substances, such as sewage treatment plants and chemical production workshops, the pipeline system, FRP bare tubes can remain stable for a long time, are not easy to be corroded, and greatly extend the service life.
Material properties
It is composed of reinforcing materials such as glass fiber and resin matrix. The combination of this composite material makes FRP bare tubes have good flexibility. In some occasions where pipes need to be bent and laid, such as underground complex terrain pipeline laying projects, it can better adapt to terrain changes.
2. FRP colored tube
Aesthetics and identification function
In addition to the basic performance of FRP bare tube, FRP bare tube colored tube has a strong aesthetic appearance. In the field of architectural decoration, such as indoor and outdoor decorative railings, modeling structures, etc., a variety of color options can be provided according to different design requirements to meet personalized architectural decoration requirements.
Colored tubes can also be used to identify pipeline systems with different functions. In the pipeline layout of industrial plants or large buildings, by using FRP colored tubes of different colors, the pipelines of different media (such as water, gas, oil, etc.) can be intuitively distinguished, which is convenient for the installation, maintenance and management of pipelines.
Environmental adaptability
It also has good weather resistance. Whether in hot sunshine or cold climate conditions, the color will not fade and maintain a good appearance. In outdoor facilities such as landscape pipelines in parks and pipelines of solar water heating systems, FRP colored tubes can not only play a functional role, but also become beautiful decorative elements.
With its unique performance, FRP bare tube colored tube has an irreplaceable position in many fields such as construction, industry, and decoration.
